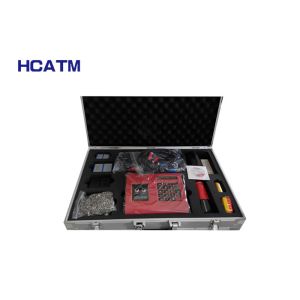

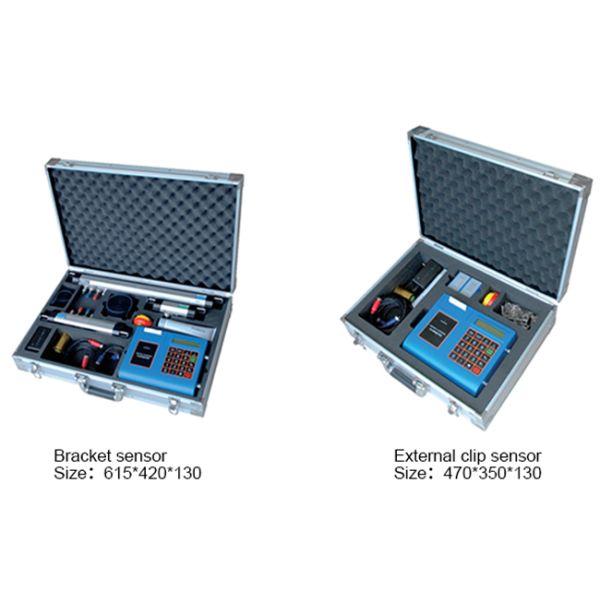

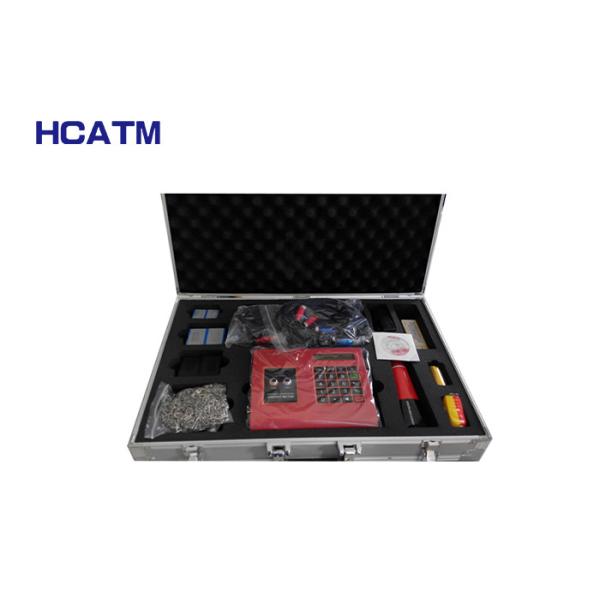

GMF200-P Water seawater sewage acid and alkali liquid beer various oil handheld ultrasonic flow meter
Product Overview
A portable ultrasonic flow meter enables non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipeline to complete the flow measurement, which is convenient and accurate. Built-in printer and SD card memory, you can print the set measurement value instantly or regularly.
Widely used in tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy and other industries can be used for production monitoring, flow comparison, temporary detection, flow inspection, water balance debugging, heating network balance debugging, and energy saving monitoring. They are necessary tools for flow detection.
Technical Parameters
| GMF200 Series Ultrasonic Flowmeter |
| Model | GMF200-P |
| Principle | Ultrasonic time difference principle |
| Precision | ±1% |
| Display | 4x8 Chinese or 4x16 Western dot matrix backlit LCD, supporting Chinese, English, Italian and French languages |
| Output | 1 channel 4-20mA output 1 channel OCT pulse output (pulse width 6-1000ms, default 200ms) 1 channel relay output |
| Data interface | Isolating the RS 485 application interface, the flow meter can be upgraded through a PC |
| Pipe | Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining |
| Pipe inner diameter | 15-6000mm |
| Straight pipe | The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter) |
| Medium | Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc. |
| Fluid temperature | -30~+160°C |
| Turbidity | 1000pmm bubble content is small |
| Flow rate | 0～±10m/s |
| Working environment | Host: -20 ~ +60 ° C; flow sensor: -30 ~ +160 ° C |
| Host: 85% RH; sensor protection grade: IP67 |
| Power supply | 3-cell rechargeable Ni-MH battery with 1.2V capacity of 2000mAH, which can work continuously for more than 12 hours every time. |
| Power consumption | 1W |
| Housing material | Flame retardant ABS |
| Host weight | 390g |
Product Features
1. No need to cut off the pipe and flow, no pressure loss
2. DN15 ~ DN6000 pipeline flow measurement
3. Fluid temperature -30 ℃ ~ -160 ℃
