Intelligent IP65 RS485 Piezoresistive Pressure Transmitter

Name: Intelligent IP65 RS485 Piezoresistive Pressure Transmitter
Brand: HCATM
Price: 1 USD

Wholesale Intelligent IP65 RS485 Piezoresistive Pressure Transmitter from china suppliers

Brand Name : HCATM

Model Number : GMP501-D

Certification : CE，RoHS

Place of Origin : Xi'an

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 3-5 days

Packaging Details : Packed in cardboard or wooden cases

Range : -0.1MPa┅0MPa ~ 0.01MPa┅100MPa

Acuracy : ±0.5%FS

Medium : Gas/Liquid

Protect level : IP65

Contact Now

GMP501-D intelligent pressure transmitter

Product Overview

GMP501-D intelligent pressure transmitter adopts pressure sensor with high stability and special circuit of micro power transmitter, the product has low power consumption in normal operation and stable and reliable performance.

Product Feature

Reliable performance, easy to install and use

Special circuit for micro power consumption, less than 15mw

Gauge pressure, absolute pressure and seal reference pressure can be measured

Product Parameter

Pressure parameter
Range	-0.1MPa┅0MPa ~ 0.01MPa┅100MPa
Overload	2 times full scale pressure or 110MPa (whichever is the smallest)
Pressure type	Gauge, Absolute, Sealed Gauge
Electrical parameters
Power supply	12~28V DC
Output signal	4mA~20mA DC (two-wire system) RS485 communication
Load resistance (Ω)	≤(U-12) /0.02
Insulation resistance	50MΩ @ 50V DC
Structural parameters
Case	Stainless steel 304
Sensor	316L stainless steel
Sealing ring	Fluororubber
Cable	∅7.5mm polyethylene special cable
Protection class	IP65 (plug-in type)		IP68 (cable type)
Environmental conditions
Media suitability	Various fluids that are non-corrosive to 316L stainless steel and fluorine rubber
Compensation temperature	-10 ℃~+ 80 ℃
Operating temperature	-30 ℃~+ 70 ℃
Storage temperature	-30 ℃~+ 70 ℃
Performance
Accuracy	±0.25% FS (typical)	±0.5% FS (maximum)
Zero temperature coefficient	0.03%FS/℃(≤100kPa)；0.02%FS/℃(＞100kPa)
Full temperature coefficient	0.03%FS/℃(≤100kPa)；0.02%FS/℃(＞100kPa)
Long-term stability	±0.1% FS / year (maximum)

Product Detail

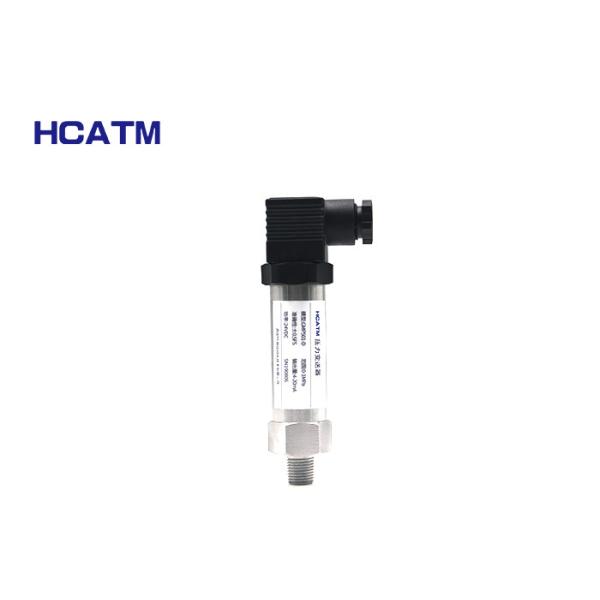

Intelligent IP65 RS485 Piezoresistive Pressure Transmitter

Product Tags:

Piezoresistive Pressure Transmitter

RS485 Pressure Transmitter

IP65 Water Pressure Transducer
