260VAC RS232 1.5W IP67 Ultrasonic Flow Transducer

  • 1
  • 2

Brand Name : HCATM

Model Number : GMF200-H

Certification : CE，RoHS

Place of Origin : Xi'an

MOQ : 1PCS

Brand : HCATM

Accuracy : ±1%

Communication : RS232

Power : 1.5W

Contact Now

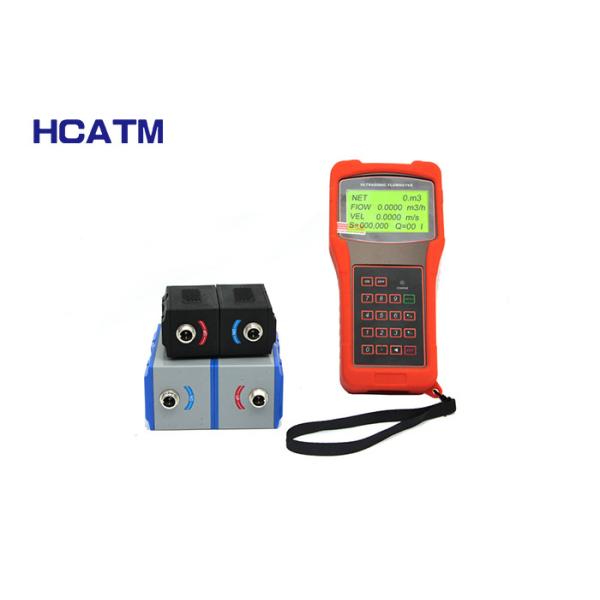

GMF200-H Handheld digital water portable ultrasonic flow meter

Product Overview

Handheld ultrasonic flowmeter is a patrol-type flow measuring instrument. The sensor has only one clamp on type, which realizes non-contact measurement. The sensor is installed on the outer wall of the pipeline to complete the measurement of the flow. It has small volume and convenient carrying. Measure accurate features.

Product Parameter

Items Performance & Parameter
Transmitter

Data

Interface

 Insulate RS232 serial interface, upgrade the flowmeter software by computer
Special Cable

Twisted-pair cable, under 50 m;

RS485, transmission distance can over 1000m

Pipe

Installation

Condition

 Material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum etc.
Diameter 15~6000mm

Measuring

Medium

 Liquid type

Such as Water (hot water, chilled water, sea water, waste water, etc.);

Oil (crude oil, lubricating oil, diesel fuel oil etc.) etc.
Temp. -30~160℃
Turbidity No more than 10000ppm and less bubble
Flow rate 0~±10m/s

Working

Environment

 Temp. Transmitter:-20~60℃; Flow Transducer:-30~ 160℃
Humidity Transmitter: 85%RH; Flow Transducer:IP67
Power Supply 3 AAA built-in Ni-MH batteries 1.2V(operation for over 12 h); 90V-260VAC adapter

Power

Consumption

 1.5W
Dimension 200*93*32mm (transmitter)

Product Details

260VAC RS232 1.5W IP67 Ultrasonic Flow Transducer

Product Features

1.Multiple liquids, fully compatible

2.Various pipe materials, accurate measurement

3.Various pipe diameters, full coverage

Product Application

260VAC RS232 1.5W IP67 Ultrasonic Flow Transducer
