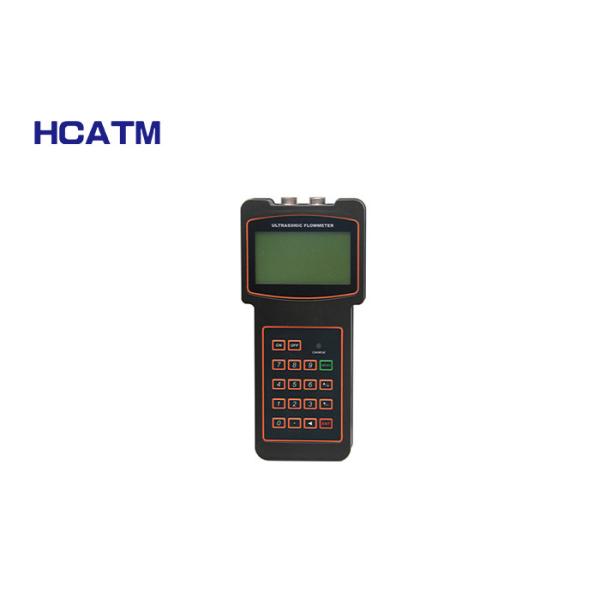

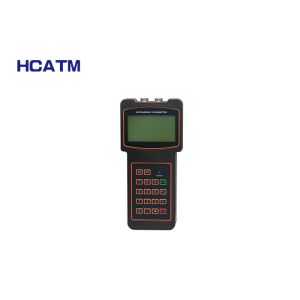

GMF200-H Hand-held Ultrasonic Flow Meter
Product Overview
GMF200-H series hand-held ultrasonic flowmeter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipe to complete the flow measurement. With small size, easy to carry, accurate mea
surement and so on.
Widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery, energy and other industries. It can be used for production monitoring, flow calibration, temporary detection, flow inspection, water meter balance debugging, heating network balance debugging, and energy saving monitoring. It is a necessary tool for timely flow detection.
Product Parameter
| Model | GMF200-H |
| Principle | Ultrasonic time difference principle |
| Precision | ±1% |
| Display | 4x8 Chinese or 4x16 Western dot matrix backlit LCD, supporting Chinese, English, Italian and French languages |
| Output | 1 channel OCT pulse output (pulse width 6-1000ms, default 200ms) |
| Data interface | Isolating the RS-232 application interface, the flow meter can be upgraded through a PC |
| Pipe | Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining |
| Pipe inner diameter | 15-6000mm |
| Straight pipe | The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter) |
| Medium | Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc. |
| Fluid temperature | -30~+160°C |
| Turbidity | 1000pmm bubble content is small |
| Flow rate | 0～±10m/s |
| Working environment | Host: -20 ~ +60 ° C; flow sensor: -30 ~ +160 ° C |
| Host: 85% RH; sensor protection grade: IP67 |
| Power supply | 3-cell rechargeable Ni-MH battery with 1.2V capacity of 2000mAH, which can work continuously for more than 12 hours every time. |
| Power consumption | 1W |
| Housing material | Flame retardant ABS |
| Host weight | 390g |
Product Features
1.No need to cut off the pipe and flow, no pressure loss
2.DN15 ~ DN6000 pipeline flow measurement
3.Fluid temperature -30 ℃ ~ -160 ℃
Company Information
Xi'an Huance Automation Technology Co., Ltd. is located in Xi'an High-tech Development Zone - Free Trade Zone, China, was established in 2007. The company is a manufacturer integrating scientific research, production, sales and service. For more than 10 years, the company has been committed to improving the data collection methods and factory automation production and management level for users. Help users to build an advanced, reliable, multi-functional, flexible configuration of integrated data acquisition and monitoring management platform. The comprehensive monitoring software GMSCADA developed by the company started in 2012. It is a large-scale distributed integrated monitoring software. The whole process of design and development of software conforms to the international standard certification of CMMI3. After years of development, it has been promoted throughout the country. Applications support DCS, PLC and RTU products from various manufacturers in the industry.
Huance produces various specifications of pressure transmitters, pressure gauges, temperature sensors, flow meters, level gauges, radar level gauges, load cells, torque sensors, etc. I/O signal processing required by the supporting system, upper and lower network communication control and redundant diagnosis and processing hardware.
The environmental monitoring automation monitoring system is applied to many SCADA fields such as long-distance pipe network transmission, power grid transmission and distribution engineering, tank area monitoring and management, urban heating and water supply network, scientific research and production control, sewage treatment, transportation, food, medicine and so on.
Huance advocates the enterprise spirit of “integrity, truth-seeking and innovation”;
In the "cooperation and win-win" business philosophy;
We will communicate with users at all times to solve the difficulties and challenges faced by users, improve production efficiency, optimize resources and energy efficiency, and improve many problems brought about by industrial production and environmental changes.
