Intelligent Integrated DN32MM Ultrasonic Heat Meter

Name: Intelligent Integrated DN32MM Ultrasonic Heat Meter
Brand: HCATM
Price: 1 USD

Wholesale Intelligent Integrated DN32MM Ultrasonic Heat Meter from china suppliers

Brand Name : HCATM

Model Number : HC-01

Certification : CE，RoHs

Place of Origin : Xi'an

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal

Supply Ability : 10000 pieces per month

Delivery Time : 3-5 days

Packaging Details : Packed in cardboard or wooden cases

Nominal diameter : DN32-DN200mm

Temperature range : 4-95℃

Accuracy class : 3

Battery work : 6 Years

Output : RS-485

Contact Now

HC-01 Ultrasonic Heat Meter

Product Overview

Ultrasonic heat meter is an intelligent integrated heat meter installed at the entranceor exit of the heat exchange circuit to measure the heat consumption during heating implementation. It has the advantages of high accuracy, low pressure loss, long use time, beautiful appearance, easy installation and use, and is suitable for automatic metering of urban heating by households, which increases the modern management level of the heating industry.

Product Features

1.Large capacity lithium battery

2.Low noise

3.Easy to use

4.Long use time

5.Centralized control can be separated

Technical Parameter

Project	Technical index
Nominal diameter (mm)	DN32	DN40	DN50	DN65	DN80	DN100	DN125	DN150	DN200
Common flow (m³/h)	6	10	15	25	40	60	100	150	250
Max flow (m³/h)	12	20	30	50	80	120	200	300	500
Min flow (m³/h)	0.12	0.20	0.6	1	1.6	1.6	4	6	10
Accuracy class	Level 3
Waterproof level	IP65
Pressure loss (KPa)	<25
Max allowable working pressure (MPa)	1.6
Temperature range(°C)	4-95
Temperature difference range (K)	3-75
Use environment temperature (°C)	Class A+8~+55
Storage environment temperature (9)	-25~+55
Battery work	6 years
Installation method	Horizontal installation / holy straight installation

Product Details

Intelligent Integrated DN32MM Ultrasonic Heat Meter

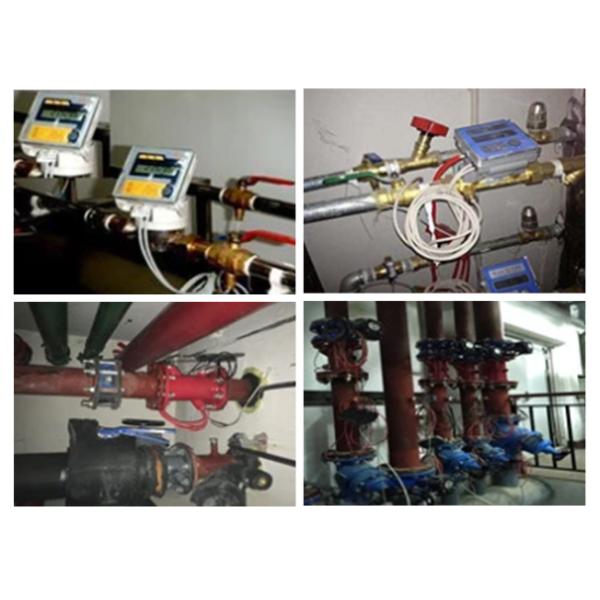

Application

Intelligent Integrated DN32MM Ultrasonic Heat Meter

Delivery

Intelligent Integrated DN32MM Ultrasonic Heat Meter

Product Tags:

DN32MM Ultrasonic Heat Meter

Lithium Battery Ultrasonic Heat Meter

RS485 Integrated Ultrasonic Heat Meter
