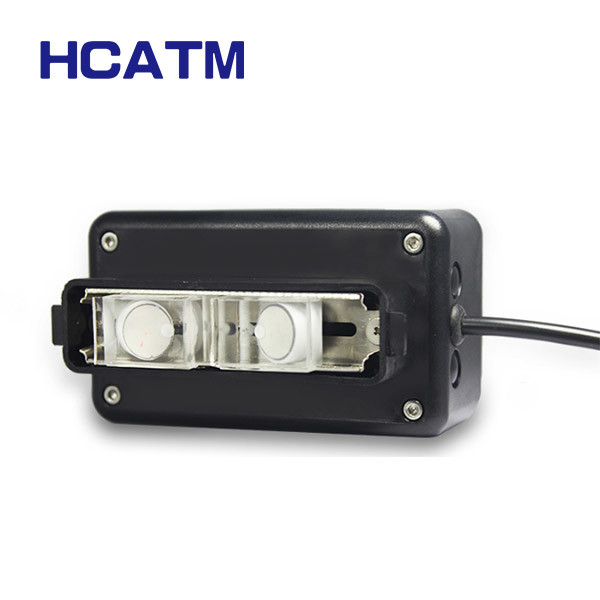

36VDC 500mA 5m/S LCD Display Ultrasonic Flow Meter

Name: 36VDC 500mA 5mS LCD Display Ultrasonic Flow Meter
Brand: HCATM
Price: 1 USD

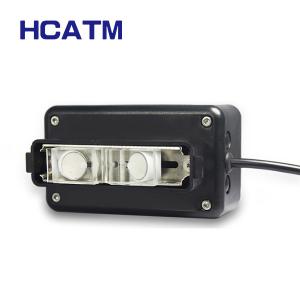

Wholesale 36VDC 500mA 5m/S LCD Display Ultrasonic Flow Meter from china suppliers

Brand Name : HCATM

Model Number : GMF200 F

Certification : CE，RoHS

Place of Origin : Xi'an

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000piece/week

Delivery Time : 3 working days after payment

Packaging Details : Carton

Brand : HCATM

Accuracy : ±2%

Display : LCD

Power : 10~ 36VDC/500mA

Shell material : ABS+PC

Keyword : Ultrasonic Flow Meter

Contact Now

GMF200-F Ultrasonic Flow Meter

Product Overview

"Buckle and Measure" is a brand-new concept of ultrasonic flowmeter, which successfully applies high-tech patented technology to the product. It continuously simplifies the use of flowmeter on the premise of ensuring product quality, and overcomes the cumbersome difficulties of flowmeter installation and use in one fell swoop.

Product Parameter

Product name	GMF200 F ultrasonic flow meter
Velocity range	0.03 ~ 5m/s
Accuracy	±2%
Keyboard	3 touch switch buttons
Display	1.44" LCD display
Installation method	pipe clamp screw fastening
Power consumption	5W (depending on function)
Power supply	10~ 36VDC/500mA
Shell material	ABS+PC
Measuring pipe	Stainless steel pipe/copper pipe/PVC pipe/carbon steel pipe
Communication interface	TTL (standard)
RS485	Support
4-20mA	Support
WIFI	support
Bluetooth	support (please contact the manufacturer for specific functions)
Protection level	IP54
Measuring medium temperature	0~60°C.
Ambient temperature	-10°C ~ 50°C
Cable length	2m
Measuring range	DN20,DN25,DN32,DN40,DN50,DN65,DN80

Powerful Functions

36VDC 500mA 5m/S LCD Display Ultrasonic Flow Meter

Product Application

36VDC 500mA 5m/S LCD Display Ultrasonic Flow Meter

Our Company information

Xi'an Huance Automation Technology Co., Ltd. is located in Xi'an High-tech Development Zone - Free Trade Zone, China, was established in 2007. The company is a manufacturer integrating scientific research, production, sales and service. For more than 10 years, the company has been committed to improving the data collection methods and factory automation production and management level for users. Help users to build an advanced, reliable, multi-functional, flexible configuration of integrated data acquisition and monitoring management platform. The comprehensive monitoring software GMSCADA developed by the company started in 2012. It is a large-scale distributed integrated monitoring software. The whole process of design and development of software conforms to the international standard certification of CMMI3. After years of development, it has been promoted throughout the country. Applications support DCS, PLC, and RTU products from various manufacturers in the industry.
