GMP501-M 12~28V DC Power supply 4mA~20mADC (two-wire system) RS485 communication ouyput intelligent pressure transmitter

Name: GMP501M 1228V DC Power supply 4mA20mADC twowire system RS485 communication ouyput intelligent pressure transmitter
Brand: HCATM
Price: 1 USD

Wholesale GMP501-M 12~28V DC Power supply 4mA~20mADC (two-wire system) RS485 communication ouyput intelligent pressure transmitter from china suppliers

Brand Name : HCATM

Model Number : GMP501-M

Certification : CE，RoHS

Place of Origin : Xi'an

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 3-5 days

Packaging Details : Packed in cardboard or wooden cases

Range : -0.1MPa┅0MPa ~ 0.01MPa┅100MPa

Medium : Gas/Liquid

Output : 4mA~20mADC (two-wire system) RS485 communication

Material : 304 316L

Power : 12~28V DC

Contact Now

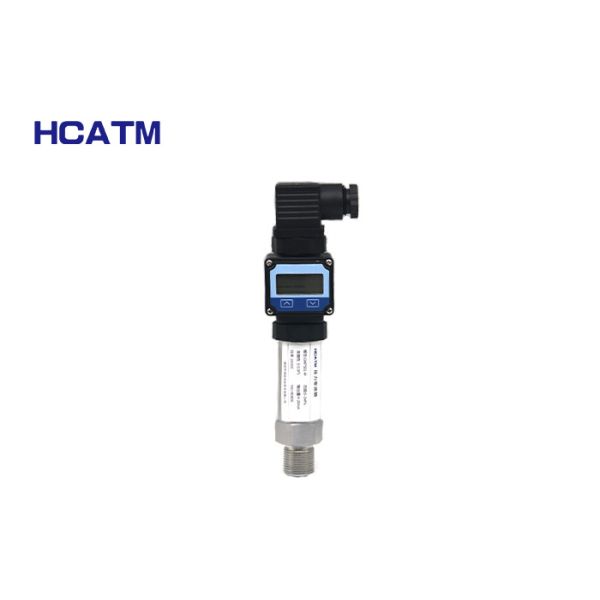

GMP501-M intelligent pressure transmitter

Product Overview

GMP501-M intelligent pressure transmitter uses high- performance diffused silicon pressure sensor as a sensitive component, selects high-performance MCU as the core of highly integrated circuits, anti-interference design of software and hardware, and full digital adjustment, which can realize 4- 20mA and RS485 communication are output at the same time without interference, and the overall performance of the product is stable and reliable.

Product Parameter

Pressure parameter
Range	-0.1MPa┅0MPa ~ 0.01MPa┅100MPa
Overload	2 times full scale pressure or 110MPa (whichever is the smallest)
Pressure type	Gauge, Absolute, Sealed Gauge
Electrical parameters
Power supply	12~28V DC
Output signal	4mA~20mA DC (two-wire system) RS485 communication
Load resistance (Ω)	≤(U-12) /0.02
Insulation resistance	50MΩ @ 50V DC
Structural parameters
Case	Stainless steel 304
Sensor	316L stainless steel
Sealing ring	Fluororubber
Cable	∅7.5mm polyethylene special cable
Protection class	IP65 (plug-in type)		IP68 (cable type)
Environmental conditions
Media suitability	Various fluids that are non-corrosive to 316L stainless steel and fluorine rubber
Compensation temperature	-10 ℃~+ 80 ℃
Operating temperature	-30 ℃~+ 70 ℃
Storage temperature	-30 ℃~+ 70 ℃
Performance
Accuracy	±0.25% FS (typical)	±0.5% FS (maximum)
Zero temperature coefficient	0.03%FS/℃(≤100kPa)；0.02%FS/℃(＞100kPa)
Full temperature coefficient	0.03%FS/℃(≤100kPa)；0.02%FS/℃(＞100kPa)
Long-term stability	±0.1% FS / year (maximum)

Product Detail

GMP501-M 12~28V DC Power supply 4mA~20mADC (two-wire system) RS485 communication ouyput intelligent pressure transmitter
