GMP501-Y Dual screen display with clear content Over-voltage flashing prompt Precision Digital Pressure Gauge

Name: GMP501Y Dual screen display with clear content Overvoltage flashing prompt Precision Digital Pressure Gauge
Brand: HCATM
Price: 1 USD

Wholesale GMP501-Y Dual screen display with clear content Over-voltage flashing prompt Precision Digital Pressure Gauge from china suppliers

Brand Name : HCATM

Model Number : GMP501-Y

Certification : CE，RoHS

Place of Origin : Xi'an

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 3-5 days

Packaging Details : Packed in cardboard or wooden cases

Range : -0.1MPa┅0MPa ~ 0.01MPa┅100MPa

Acuracy : ±0.25%FS

Medium : Gas/Steam/Liquid

Material : 304/316L

Power : 3.6DC (battery-powered)

Protect level : IP44

Contact Now

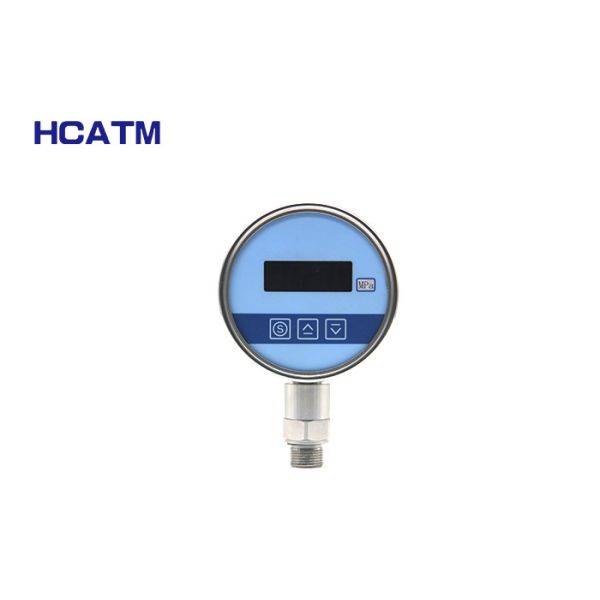

GMP501-Y Precision Digital Pressure Gauge

Product Overview

GMP501-Y digital pressure gauge is an intelligent digital measurement product that integrates measurement and display. It uses a high-performance diffused silicon pressure sensor as a sensitive element. It uses a high-performance integrated digital processing circuit and a full stainless steel structure. Simple operation, safety and reliability.

Product Parameter

Pressure parameter
Range	-0.1MPa┅0MPa ~ 0.01MPa┅100MPa
Overload	2 times full scale pressure or 110MPa (whichever is the smallest)
Pressure type	Gauge, Absolute, Sealed Gauge
Electrical parameters
Power supply	3.6DC (battery-powered)
Display range	-19999 ~ 99999
Structural parameters
Pressure connection	Stainless steel 304
Case	Stainless steel
Sensor	316L stainless steel
Sealing ring	Fluororubber
Protection class	IP44
Environmental conditions
Media suitability	Various fluids that are non-corrosive to 316L stainless steel and fluorine rubber
Compensation temperature	-10℃～+80℃
Operating temperature	-20℃～+70℃
Storage temperature	-30℃～+70℃
Performance
Accuracy	±0.25% FS (typical)	± 0.5% FS (maximum)
Zero temperature coefficient	0.03%FS/℃(≤100kPa)；0.02%FS/℃(＞100kPa)
Full temperature coefficient	0.03%FS/℃(≤100kPa)；0.02%FS/℃(＞100kPa)
Long-term stability	±0.2% FS / year (maximum)

Product Detail
